Car GPS Locator Waterproof Car Anti Theft Tracker Gps Tracker Universal

Feature of Product:

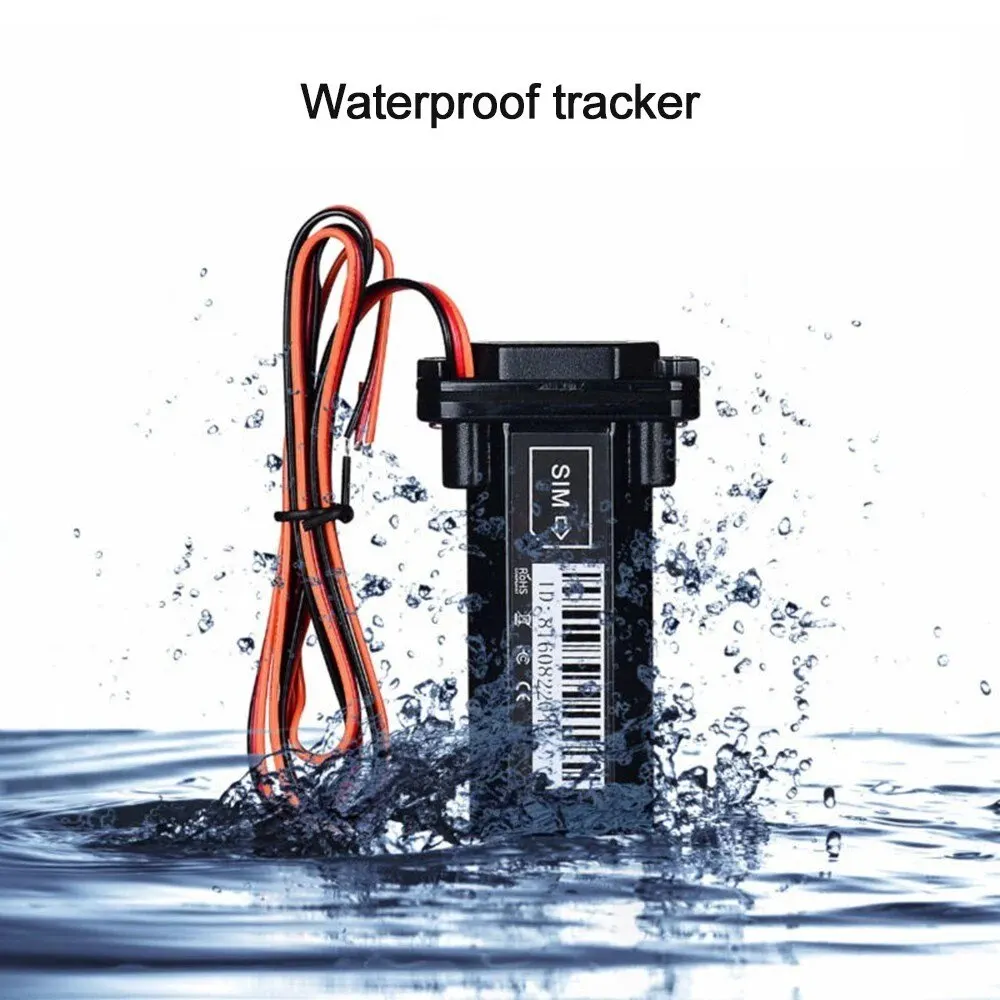

●This product adopts 3-proof design, waterproof, fireproof and dustproof

● GSM quad-band system is universal in the world;

● High-sensitivity GPS receiver chip;

● Built-in high-sensitivity GPS antenna, super receiving performance;

● Highly integrated design;

● A vehicle terminal designed with dual built-in antennas (GSM, GPS);

● Built-in switching power supply, ultra-wide voltage input range;

● Built-in vibration sensor to realize vehicle intelligent anti-theft;

● Support ACC detection, vehicle start alarm;

● An external relay can be connected to realize the control of vehicle oil and electricity;

● Built-in backup battery to realize illegal thread trimming alarm;

● Compatible with external device serial communication.

Selling Point:

● Size:90*52*20(mm)

● GSM: 850/ 900/ 1800/ 1900 MHz

● GPS: u-blox-7020

● Number of channels: 20 channels

● Tracking sensitivity: -159dBm

● Capture sensitivity: -144dBm

● Positioning time: Hot start: Warm start: Cold start:

● Built-in antenna: GSM quad-band antenna, GPS high-gain antenna

● Built-in battery: 450mAh

●Power input range: 8-75 VDC

Introducers:

The main function of the product:

1. Real-time positioning: The device uses a quad-core precise positioning chip, which is accurately calculated in seconds. After the vehicle is stolen or robbed, the driving status (time, speed, direction, location, etc.) of the vehicle can be remotely grasped at any time, thereby assisting the police to quickly solve the case.

2. Built-in battery: Built-in high-quality high-quality high-temperature-resistant flame-proof and explosion-proof military polymer battery, in case thieves cut the power cord, the product can still work continuously for more than 7 hours.

3. Electronic fence: Draw an area on the platform map. When the vehicle goes out or enters the area set up by itself, the platform will have an alarm message, which is suitable for vehicle anti-theft and company vehicle height management.

4. Trajectory playback: On our platform, 60 days of driving records can be saved for easy playback. At the same time, the speed, direction and dwell time of the vehicle can be displayed during the playback process.

5. Vibration alarm: With a built-in vibration sensor, you can set the vibration duration alarm by SMS to realize intelligent vehicle anti-theft.

6. Displacement alarm: You can send text messages to set the vehicle displacement distance alarm, and grasp the status of the vehicle within the range you set in real time.

7. Power failure alarm: When the thief illegally dismantles the device or cuts the power cord, the device will immediately send an alarm message to your mobile phone or make a call (can be set), so that the thief has nowhere to escape.

8. Intelligent power saving: When the vehicle is stationary, the device automatically enters the built-in battery power supply state to avoid continuous power consumption of the vehicle battery, resulting in failure to start the ignition.

Warm Tips:

Please read the installation guide before use for correct installation and quick operation

How to Use:

Please refer to the instruction manual
